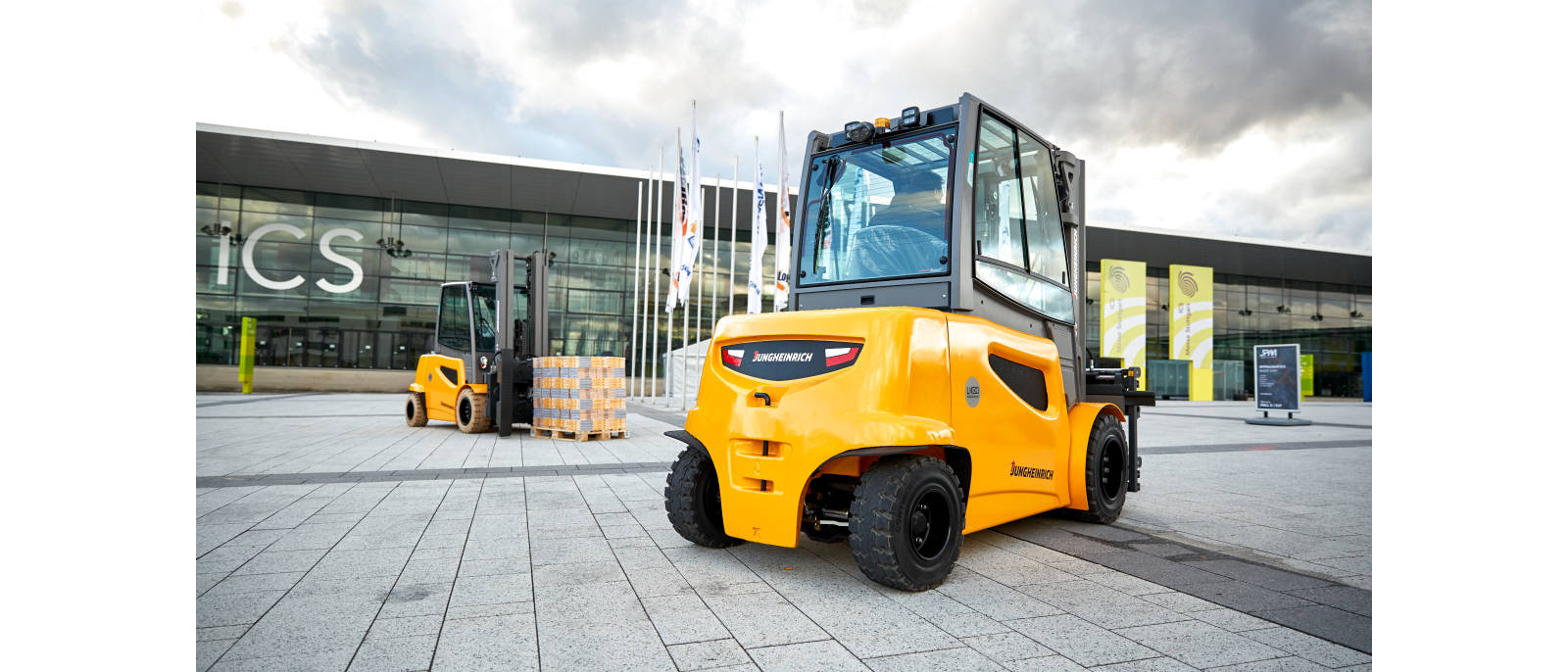

Series 5 electric fork lift

LogiMAT 2018_[MAM-45000] (1).png


3.5-5 Ton
Four-Wheel Truck



EFG535/540K/540/545K/550/S40/S50

Our Series 5 electric four-wheel counterbalanced fork lift trucks with capacities from 2500 kg to 5000 kg offer the best features for the toughest indoor and outdoor applications as well as the use of a range of attachments. Moreover, our PureEnergy technology concept allows them to achieve best possible energy and cost efficiency combined with maximum performance.




PureEnergy reduces consumption while simultaneously significantly increasing throughput. We achieve this by using the most advanced 3-phase AC technology in combination with the compact controller and the compact hydraulic unit. Measurements as per the VDI cycle document: At maximum throughput, our EFG Series 5 consumes up to 20% less energy than comparable competitor models.

A choice of configuration packages with variable travel/lift speeds from the Efficiency and drive&liftPLUS modules solves your transport and stacking operations with maximum energy efficiency.

The infinitely adjustable steering column and armrest allow for adjustment to suit all operator sizes. Individual modification of the controls is very easy thanks to the single-point adaptation via 2 adjustable axes.

Our EFG Series 5 offers the best visibility on the market thanks to an expanded field of vision. We achieve this thanks to our compact mast, compact profile nesting, an optimised chain and hose guide as well as 2 viewing windows in the cross member.

The truck contour is closed on the operator's right side. This guarantees maximum rigidity and stability for the overall design and creates a number of storage options, e.g. for papers and a smartphone.

Thanks to proven concepts for demanding, yet energy and cost-saving applications, the EFG Series 5 trucks continue to set benchmarks.

specifications

Model Load Capacity Maximum Lift (h3) Travel Speed Overall Length Battery Voltage
EFG 535k 3.50 ton 7320 mm 18 km/h 3827 mm 80 V
EFG 540k 4.00 ton 7320 mm 17 km/h 3818 mm 80 V
EFG 540 4.00 ton 7320 mm 17 km/h 3962 mm 80 V
EFG 545k 4.00 ton 7320 mm 17 km/h 4102 mm 80 V
EFG 545 4.50 ton 7320 mm 17 km/h 3818 mm 80 V
EFG 550 4.50 ton 7320 mm 17 km/h 3962 mm 80 V
EFG S40 5.00 ton 7320 mm 17 km/h 3962 mm 80 V
EFG S50 5.00 ton 7320 mm 17 km/h 4102 mm 80 V

Features

  • Optimum energy efficiency

  • Efficiency and drive&liftPLUS performance packages

  • Maximum visibility

  • Lateral battery exchange

  • Ergonomic and easily adjustable operating concept

  • Ergonomic workstation
