Tow Tractor,
3.0 ton

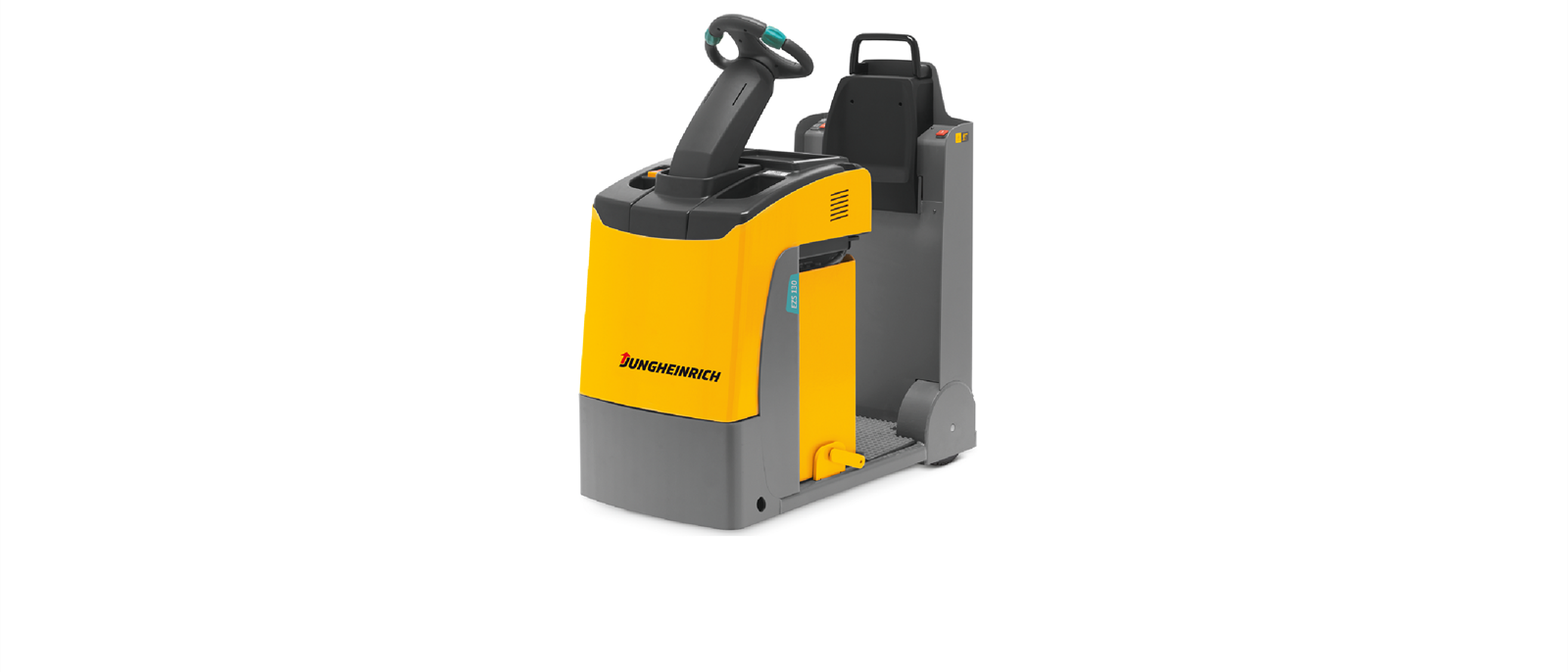

EZS 130

The EZS 130 is a particularly compact tow tractor, ideal for pulling trailers up to 3,000 kg. A narrow width of just 600 mm makes the EZS the ideal truck for particularly narrow and confined spaces. Attaching several trailers allows the loading areas to be varied. This contributes towards flexible and economical material handling.

The coupling is clearly visible from any position and is also easily accessible. The semi-automatic remote coupling release (optional) allows for the coupling/releasing of trailers without the operator having to leave the platform. This saves both time and costs. A further advantage: The truck is available with several different couplings and can thus be adapted to any type of trailer.

The 24 V drive motor with its 3-phase AC technology ensures high performance. The advantages: Powerful acceleration and high maximum speed. Combined with significant energy savings, extended operating times and minimised maintenance costs (due to omission of carbon brushes). This is due to the optimised efficiency, the matched relationship between the drive motor and drive electronic control as well as regenerative braking.

The main ergonomic advantages are the low stand-on platform for frequent mounting and dismounting and the short distance from operator position to load. The EZS also operates effortlessly in confined spaces. Its turning radius is so small that the operator will feel that he is turning on the spot.

The jetPILOT steering wheel, supportive backrest and automatic curveCONTROL speed reduction, as well as the load wheels with CSE tyres provide comfort and safety, especially on corners.

Specifications

Features

• Width only 600 mm

• jetPILOT

• curveCONTROL

• speedCONTROL

• Semi-automatic remote coupling release
